Mini Caustic-Chlorine Plant (Chlor-Alkali)

Technologies /Mini Caustic-Chlorine Plant (Chlor-Alkali)

HIGH STRENGTH HYPOCHLORITE PLANT

safely produce aqueous bleach using salt, water and power

Due to the hazardous nature of the liquid or gaseous chlorine, engineering and management controls are employed to minimize risks associated with its handling and use. Using aqueous sodium hypo-chlorite for disinfection or bleaching eliminates the inherent risks associated with storing and handling liquid or gaseous chlorine.

As an alternative to using liquid or gas chlorine, chlorine as aqueous sodium hypochlorite an inherently safer form makes modern bleach or disinfectant consumer industries to heavily rely on sodium hypochlorite. Sodium Hypochloritesolutions have attained wide-spread usage in bleaching operations and as disinfectants, both in the home and in industry. Sodium hypochlorite (NaOCl) are commercially produced onsite by the reaction of chlorine and sodium hydroxide solution formed as major co-products from the chlor-alkali production membrane cells.

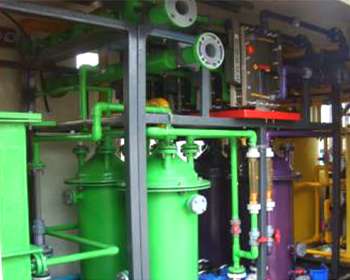

RT HYPO FORTE, The Advanced Membrane Electrolysis Technology

Noble Eco Systems in the field of electrochemical technology for three decades has developed comprehensive line of exceptionally efficient products for the compelling specific requirements; technically designed and developed RT HYPOFORTE specially for hypochlorite consuming industries with the in-house-built RT AME advanced membrane electrolyzer technology.

RT AME, the membrane electrolysis  technology generates chlorine and caustic, formed by separation of sodium-chloride ions with purified water at ion-exchange membranes. Noble Eco Systems’s RT HYPOFORTE technology produces membrane grade sodium hypochlorite bleach of high quality at required concentration with the only feed in purified salt and water, operating the plant at a minimum cost and maximum safety compared to other existing commercial processes.

Noble Eco Systems’s RT HYPO FORTE, the membrane electrolysis  technology provides safe and cost effective production of high purity, commercial-strength sodium hypochlorite solution with the simple, less expensive and easy source raw materials; purified salt (brine), water and electricity. RT HYPO FORTE  produces pure bleach at the required concentrations either for own internal use on-site or alternatively distribution and consumer sale.

The RT HYPO FORTE electrochemical technology,a specific design for continuous production of commercial hypochlorite on-site, economically and harmless alternative to a disinfection with chlorine gas,chlorine bleaching or other compounds of chlorine.  RT HYPO FORTE, the safe, zero-polluting and multi-configurable system produces bleach at required concentrations, ranging from  5 % to 12.5% of trade grade.

Capacity Range
PILOT PLANT
MODELHYPO PRODUCTION CAPACITY
RT HYPOFORTE 10100 liters/day
RT HYPOFORTE 20200 liters/day
RT HYPOFORTE 50500 liters/day
MINI PLANT
MODELHYPO PRODUCTION CAPACITY
RT HYPOFORTE 1001000 liters/day
RT HYPOFORTE 2502500 liters/day
RT HYPOFORTE 5005000 liters/day
PRODUCTION PLANT
MODELHYPO PRODUCTION CAPACITY
RT HYPOFORTE 100010000 liters/day
RT HYPOFORTE 200020000 liters/day
RT HYPOFORTE 500050000 liters/day
