MARINE SEWAGE TREATMENT SYSTEM
Technologies / MARINE SEWAGE TREATMENT SYSTEM
MARINE SEWAGE TREATMENT SYSTEM
marine waste management : treat, disinfect & discharge marine sewage (waste) safely
MARINE POLLUTION AND SHIP WASTE DISCHARGE
Generally, marine wastewater is composed of both toxic and non-toxic organic and inorganic contaminants, micro and macro suspended solid contaminants comprising cellulose, sand, grit, human waste/excreta emulsions and gases. Sewage high in BOD can deplete oxygen in receiving waters, causing fish kills and ecosystem damaging. Discharge of bacterial contaminants and suspended solids called pollutants or contaminants(sewage) from point sources contaminates and pollutes the seawater / marine environment and are prohibited unless a permit has been obtained. So marine wastes / marine wastewater must be treated before discharges from vessel, complying with regulations / guidelines laid by the Marine Protection Committee (MEPC) of the INTERNATIONAL MARITIME ORGANISATION (IMO).
SEWAGE TREATMENT SYSTEM FOR TREATING MARINE WASTES & MARINE WASTEWATER (MWTS)
TiTaNs’ RT Pure™-M Marine Sewage Treatment System comprises wastewater collection tank, where wastewater slurry is pumped into it. The wastewater slurry is routed by a macerator pump for maceration of the suspended solid particles, resulting in smaller sized particles.
Macerated slurry mixed with seawater then pumped into electrolytic cell which oxidizes and disinfects using seawater and applied DC current. The electrochemical reaction results in production of oxidants which kills harmful coliform bacteria and oxidize the organic compounds in the macerated slurry. Followed by flocculation process inside the electrocoagulation cell, the slurry is routed to clarifying tank to facilitate further separation of the sludge which is precipitated at the bottom of the tanks. The treated effluent is discharged into the sea and the precipitated / compacted sludge is separated for disposal as per IMO guidelines.

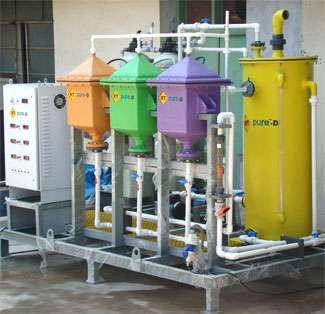

RT PURE™-M MARINE SEWAGE TREATMENT SYSTEM (MARINE SANITATION DEVICE - MSD)
Macerated slurry mixed with seawater then pumped into electrolytic cell which oxidizes and disinfects using seawater and applied DC current. The electrochemical reaction results in production of oxidants which kills harmful coliform bacteria and oxidize the organic compounds in the macerated slurry. Followed by flocculation process inside the electrocoagulation cell, the slurry is routed to clarifying tank to facilitate further separation of the sludge which is precipitated at the bottom of the tanks. The treated effluent is discharged into the sea and the precipitated / compacted sludge is separated for disposal as per IMO guidelines.
TiTaN®s’ RT Pure™-M Marine Sewage Treatment System effectively removes pathogens, oxygen demanding organisms and substances (BODs), suspended solids and particulate matter from (sewage) both black water & gray water.
RT PURE™-M, a multi-functional, bio-friendly system generates sodium hypochlorite with mixed radicals – a safe, reliable and secure solution for NEUTRALIZATION OF VARIOUS CONTAMINATING SPECIES in marine waste streams. TiTaN®s’ standard MARINE SEWAGE TREATMENT SYSTEM combines the physical separation with mixed oxidants generation system, as either modular, skid assembled or containerized (MWTS) system which manage the whole treatment process. TiTaN®s’ RT PURE™-M design ensures adequate provisions for either retrofit or for new builds and can be configured to suit the available space and piping layout of marine systems.
Applications
- Cruise Ships marine wastewater treatment
- Passenger Ferries Sewage treatment
- FPSO, FSO marine sewage treatment
- Cruise Ships sewage water treating system
- Oil Rigs & Platforms sewage treatment
- Residential Colony waste treatment system
- Navy Vessels (ships) marine sanitation
- Work Boats & Merchant Vessel sanitation
- Other ocean-going vessel sanitation
RT AME CHLOR ALKALI PLANT
Capacity Range
| SYSTEM MODEL | NO OF PERSONS black water | NO OF PERSONS black & grey water | CAPACITY |
|---|---|---|---|
| RT-PURE-15 | 15 | 7 | 1780 liters/day |
| RT-PURE-25 | 25 | 12 | 2900 liters/day |
| RT-PURE-50 | 50 | 20 | 5800 liters/day |
| RT-PURE-75 | 75 | 30 | 8650 liters/day |
| RT-PURE-100 | 100 | 40 | 11400 liters/day |
| RT-PURE-150 | 150 | 64 | 17000 liters/day |
| RT-PURE-200 | 200 | 86 | 22400 liters/day |
| RT-PURE-250 | 250 | 110 | 27900 liters/day |
| RT-PURE-400 | 400 | 178 | 44500 liters/day |
| RT-PURE-500 | 500 | 225 | 55400 liters/day |
D.C Power consumption: 5200 watt / ton of potassium chlorate production.
Potassium Chloride requirement: 560kg / ton of potassium chlorate production.
Benefits
- Automatic & On-demand Process
- Safe & Efficient Water Treatment
- Treats both black & gray water
- Safe and Bio degradable disinfectant
- Multi-configurable electrolyzer modules
- No Odor / sludge generated through process
- Compact & light weight, require less space
- Easy to install, operate & maintain
- No Hazardous chemicals used or evolved
- Replacement and revamp of systems, replacement cells for existing Sanitation systems
